B051110.WRN-B

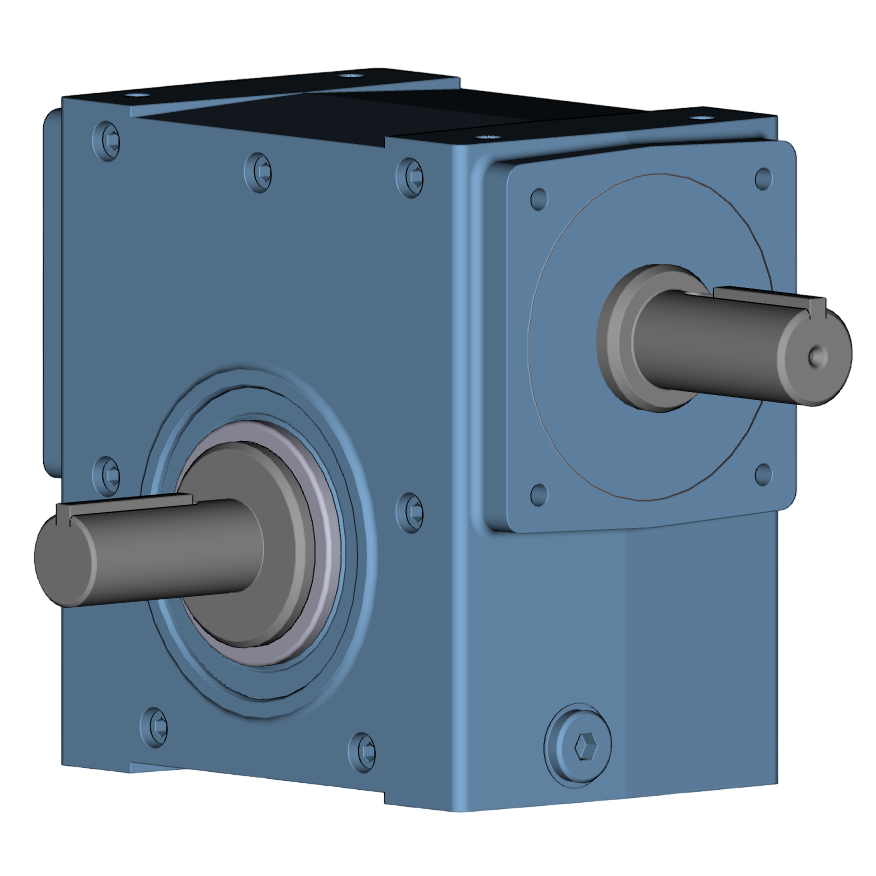

Cone Drive Right Angle Worm Gearbox

• 1.97" Center Distance

• 10:1 Ratio

• 0.75" Solid Input Shaft

• 1.125" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 175

• Maximum Input Horsepower: 2.65

• Maximum Output Torque: 830 lb-in

• Efficiency: 88%
