B051115.WARX1

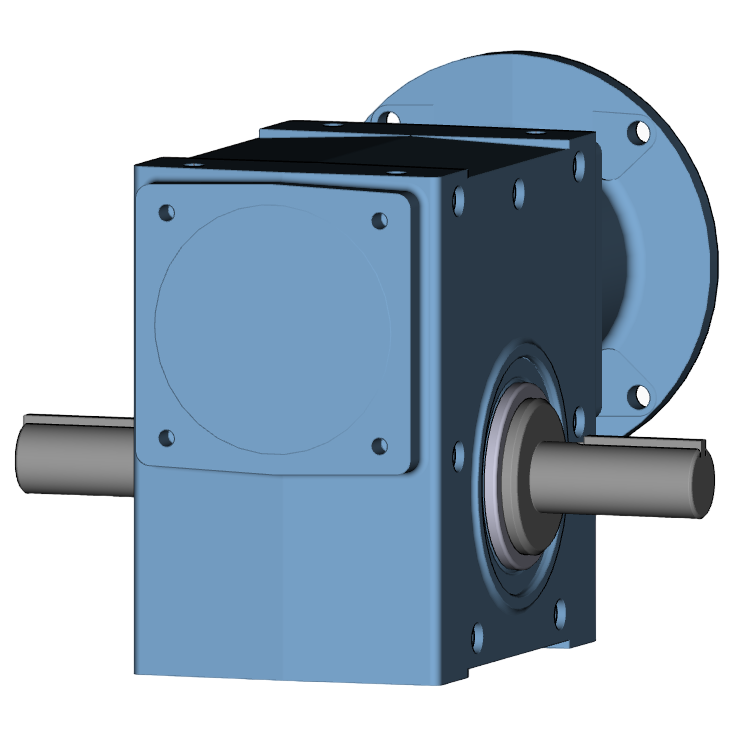

Cone Drive Right Angle Worm Gearbox

• 1.97" Center Distance

• 15:1 Ratio

• NEMA 180TC Motor Adapter Input

• 1.00" Double Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 117

• Maximum Input Horsepower: 2.02

• Maximum Output Torque: 919 lb-in

• Efficiency: 84%
