B051115.WRN-B

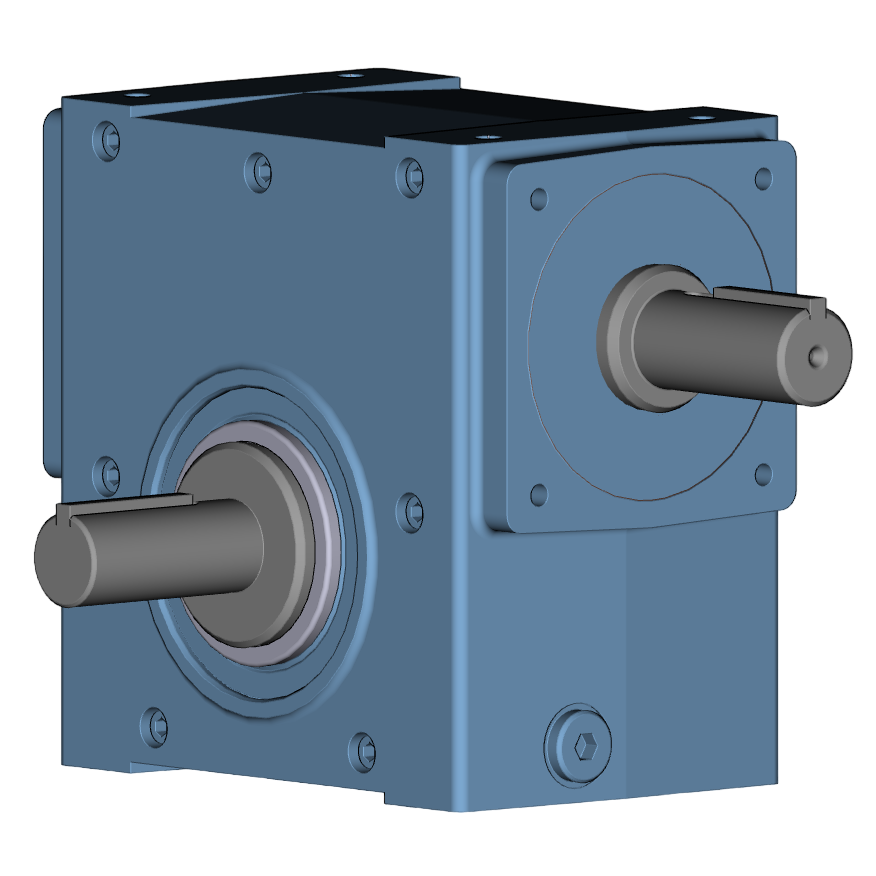

Cone Drive Right Angle Worm Gearbox

• 1.97" Center Distance

• 15:1 Ratio

• 0.75" Solid Input Shaft

• 1.125" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 117

• Maximum Input Horsepower: 2.02

• Maximum Output Torque: 919 lb-in

• Efficiency: 84%
