B051120.WANVA

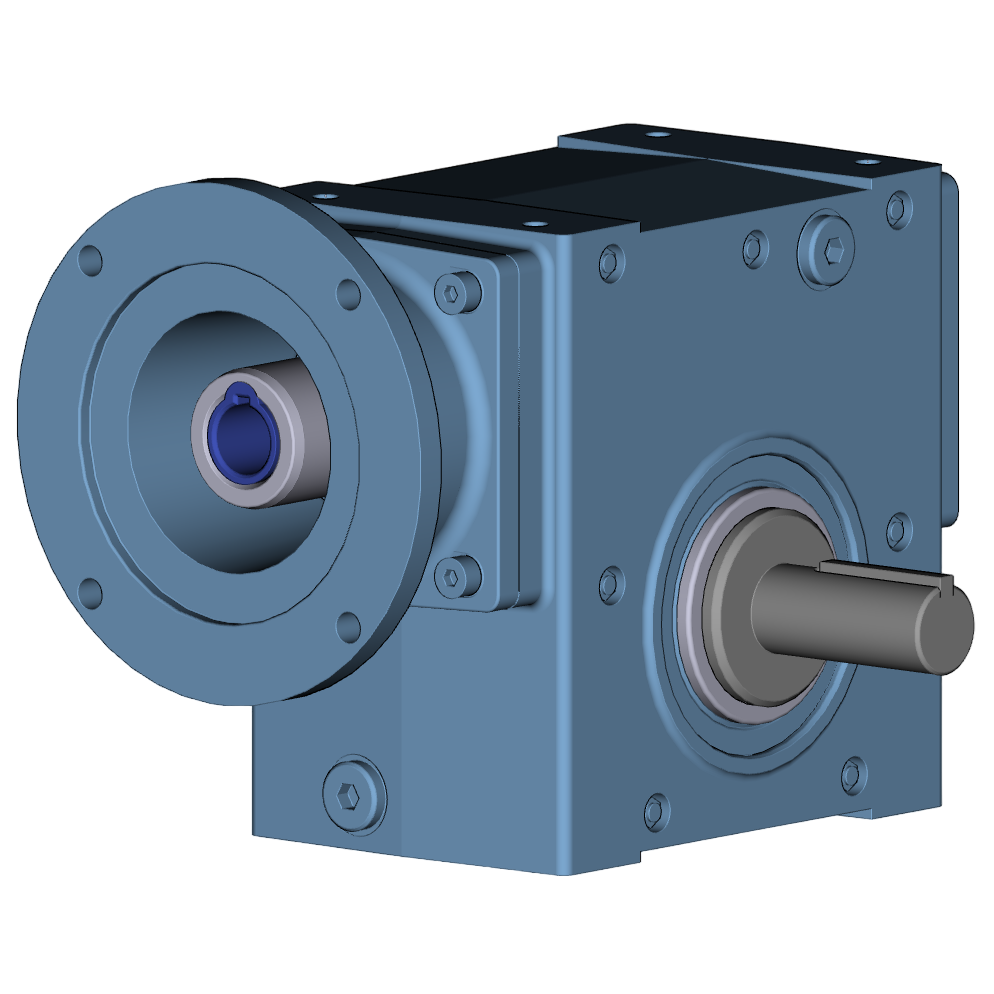

Cone Drive Right Angle Worm Gearbox

• 1.97" Center Distance

• 20:1 Ratio

• NEMA 140TC Motor Adapter Input

• 1.125" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 88

• Maximum Input Horsepower: 1.6

• Maximum Output Torque: 927 lb-in

• Efficiency: 80%
